A comfortable cabin environment significantly enhances passenger satisfaction and crew efficiency during flight. The Embraer E170/E190 Temperature Control System is precisely engineered to maintain ideal conditions in both the cockpit and passenger cabin, ensuring consistent comfort throughout every flight phase. By integrating dual-zone temperature controls, sophisticated sensors, and automated modulation valves, the system reliably delivers optimal temperatures tailored to crew and passenger preferences.

Evolution of Aircraft Temperature Control

Early temperature control systems relied heavily on manual adjustments and basic sensors, often leading to inconsistent cabin temperatures. Today, advanced systems like those found on the Embraer E-Jet series leverage precise electronic sensors and automated airflow modulation, maintaining uniform comfort with minimal crew intervention. This technological progression is essential not just for passenger satisfaction, but also for operational efficiency, reducing crew workload and ensuring consistent performance.

System Operation and Key Components

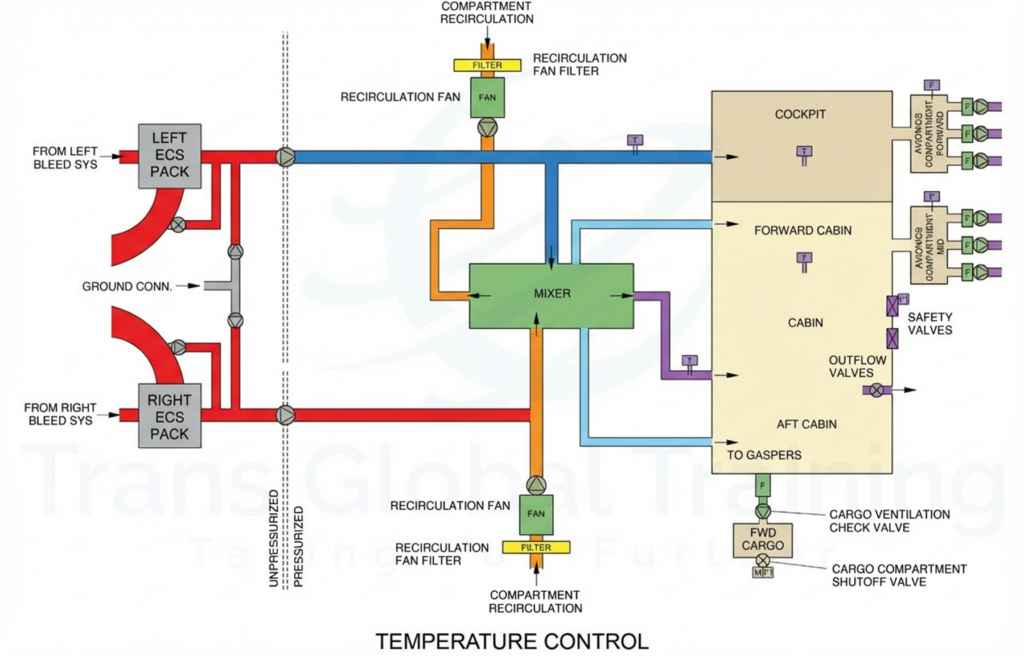

The Embraer E-Jet Temperature Control System provides independent temperature management for two main zones—the cockpit and passenger cabin.

In the cockpit, the flight crew selects the desired temperature using the cockpit temperature selector on the overhead AIR COND/PNEUMATIC control panel. The system then compares this selected temperature to actual cockpit conditions, using two dedicated sensors to provide continuous feedback. Any temperature difference prompts the Air Management System (AMS) controller to adjust the left air conditioning pack bypass valve, blending warmer bypass air with cooler conditioned air to reach the set point rapidly.

Passenger cabin temperature control functions similarly but offers greater flexibility depending on aircraft configuration. In simpler single-zone configurations, flight crews manage the cabin temperature directly. For aircraft equipped with dual-zone capability, cabin crew can independently adjust forward and aft zones using dedicated selectors located on attendant panels. Here, the AMS controller adjusts both the right pack bypass valve and a dedicated trim air valve, modulating airflow precisely for each zone. This ensures passengers experience uniformly comfortable temperatures across the entire cabin.

Advanced Sensors and Automation

The heart of the Embraer E-Jet Temperature Control System is its precise sensing and automated modulation capabilities. Each zone employs dual-element Resistance Temperature Devices (RTDs), providing robust redundancy and continuous accurate monitoring. If one sensor element fails, the AMS controller seamlessly relies on the second sensor, avoiding any disruption in cabin comfort. Additionally, the system rapidly recirculates cabin air, mixing filtered recirculated air with freshly conditioned air from the packs. This constant circulation not only maintains stable cabin temperatures but also significantly improves overall air quality, refreshing the cabin environment up to 25 times per hour.

Benefits for Crew and Passengers

The Embraer E170/E190 Temperature Control System offers several important advantages:

• Consistent Comfort: Automatic adjustments ensure optimal temperatures, reducing manual intervention and enhancing passenger satisfaction.
• High Reliability: Dual sensors and automated valve modulation minimize the risk of system failures, providing continuous operation even during component malfunctions.
• Enhanced Air Quality: The frequent cabin air exchange significantly improves cabin air quality, contributing to a healthier onboard environment.

Looking Ahead

As passenger expectations continue to rise, aircraft manufacturers like Embraer consistently enhance onboard systems. Future developments in cabin temperature control will likely integrate advanced machine learning algorithms and predictive analytics to anticipate and respond proactively to passenger comfort needs, further enhancing reliability and comfort. For now, the Embraer E-Jet family, including the E170/E190, stands out with its proven, robust, and passenger-focused temperature control technology.
