For much of aviation history, communication was limited by geography. Early aircraft relied on short-range radio systems that worked only when ground stations were within reach. As commercial air travel expanded across oceans and remote regions, the industry faced a challenge that could not be solved by conventional radio alone: how could an aircraft remain connected when it was far beyond the line-of-sight range of VHF communication?

The answer emerged through satellite technology. The SATCOM System in the Boeing 747-400 represents one of the key milestones in aviation’s transition from traditional voice radio to truly global connectivity. It enabled long-haul aircraft to maintain communication across oceans, polar routes, and remote airspace, supporting both operational safety and airline efficiency.

The evolution toward satellite communications began in the late twentieth century, when aircraft manufacturers and avionics providers recognised that HF radio, while useful for long-range voice, was often subject to atmospheric interference and inconsistent clarity. Satellites offered a new solution: stable, high-quality communication links that could support voice and data services regardless of distance from land-based infrastructure. By the time the Boeing 747-400 entered service, SATCOM had become a defining feature of modern intercontinental operations.

In simple terms, the SATCOM system provides a communication pathway between the aircraft and external satellite networks, allowing voice calls and datalink messaging over vast distances. In the Boeing 747-400 training documentation, the Satellite Communications System is presented as a dedicated aircraft communications suite with its own avionics units, antenna systems, and cockpit controls BK-747KLM-380R0-COM-1of2.

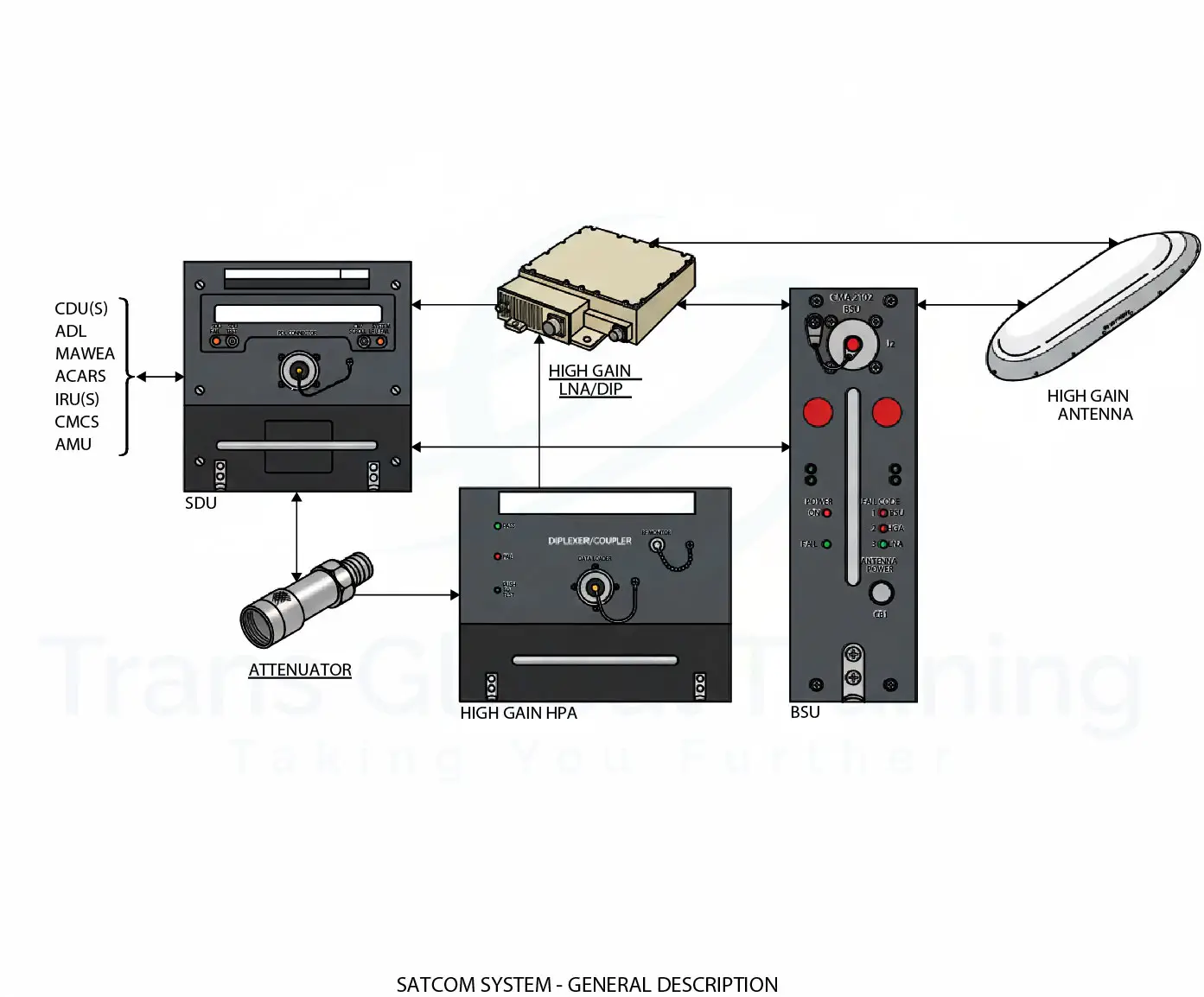

At the heart of the SATCOM System in the Boeing 747-400 is the Satellite Data Unit (SDU). This unit acts as the central processor, managing the flow of voice and data between onboard users and the satellite network. The SDU interfaces with other aircraft systems and provides the core communications management required for satellite operation BK-747KLM-380R0-COM-1of2.

One of the most distinctive elements of SATCOM is the High Gain Antenna System, which allows the aircraft to transmit and receive satellite signals efficiently. Unlike fixed radio antennas, satellite antennas must maintain precise alignment with orbiting satellites while the aircraft moves through changing headings and latitudes. To achieve this, the Boeing 747-400 SATCOM installation includes a Beam Steering Unit, which directs antenna positioning to maintain the satellite link during flight BK-747KLM-380R0-COM-1of2.

Signal strength is further supported by specialised amplifier components. The system includes both a High Power Amplifier, which boosts outgoing transmissions, and a Low Noise Amplifier/Diplexer, which improves reception sensitivity for weak incoming satellite signals BK-747KLM-380R0-COM-1of2. Together, these components ensure that the aircraft can maintain clear communication even when operating thousands of miles from the nearest ground station.

From the flight crew’s perspective, SATCOM is controlled through a dedicated Control Display Unit (CDU). This provides the interface for log-on procedures, voice operation, and system status monitoring. The training manual outlines dedicated sections for log-on, voice operation, and system self-tests, highlighting how SATCOM is treated as an integrated operational communication tool rather than a secondary add-on BK-747KLM-380R0-COM-1of2.

The benefits of the SATCOM System in the Boeing 747-400 extend beyond voice communication. Satellite connectivity supports datalink services, operational messaging, and coordination with airline dispatch and maintenance teams. In long-range operations, SATCOM provides an additional layer of redundancy alongside HF and VHF, ensuring that communication remains available in abnormal situations or remote airspace.

Looking ahead, satellite communications are rapidly becoming even more central to aviation. Modern aircraft increasingly rely on SATCOM not only for cockpit voice and datalink, but also for real-time aircraft health monitoring, broadband connectivity, and future air traffic management concepts. New satellite constellations promise lower latency, higher bandwidth, and global coverage that far exceeds the early SATCOM systems of the 747-400 era.

Yet the Boeing 747-400 remains a landmark in this evolution. The SATCOM System in the Boeing 747-400 represents the moment when the jumbo jet truly became a globally connected aircraft, capable of maintaining communication anywhere on Earth. It is a system that quietly transformed long-haul aviation, linking the flight deck to the wider world far beyond the horizon.
