Modern widebody aircraft are often described as flying cities, packed with complex systems that must work flawlessly at 35,000 feet. Among the most essential of these is hydraulic power. The Hydraulic Power System in the Boeing 747-400 provides the immense physical force required to move flight control surfaces, extend landing gear, operate brakes, and support many other heavy-duty functions. Without it, the aircraft would quite literally lose its muscle.

The story of aircraft hydraulics begins in the early decades of aviation, when pilots relied on direct mechanical linkages—cables, pulleys, and rods—to move control surfaces. This worked well enough for small aircraft, but as airliners grew larger and faster, the forces required to move ailerons, elevators, and rudders became too great for purely mechanical systems. Engineers began adopting hydraulic assistance in the mid-twentieth century, particularly as jet aircraft introduced higher speeds and heavier control loads. By the time widebody aircraft emerged, hydraulics had become the backbone of aircraft mechanical power.

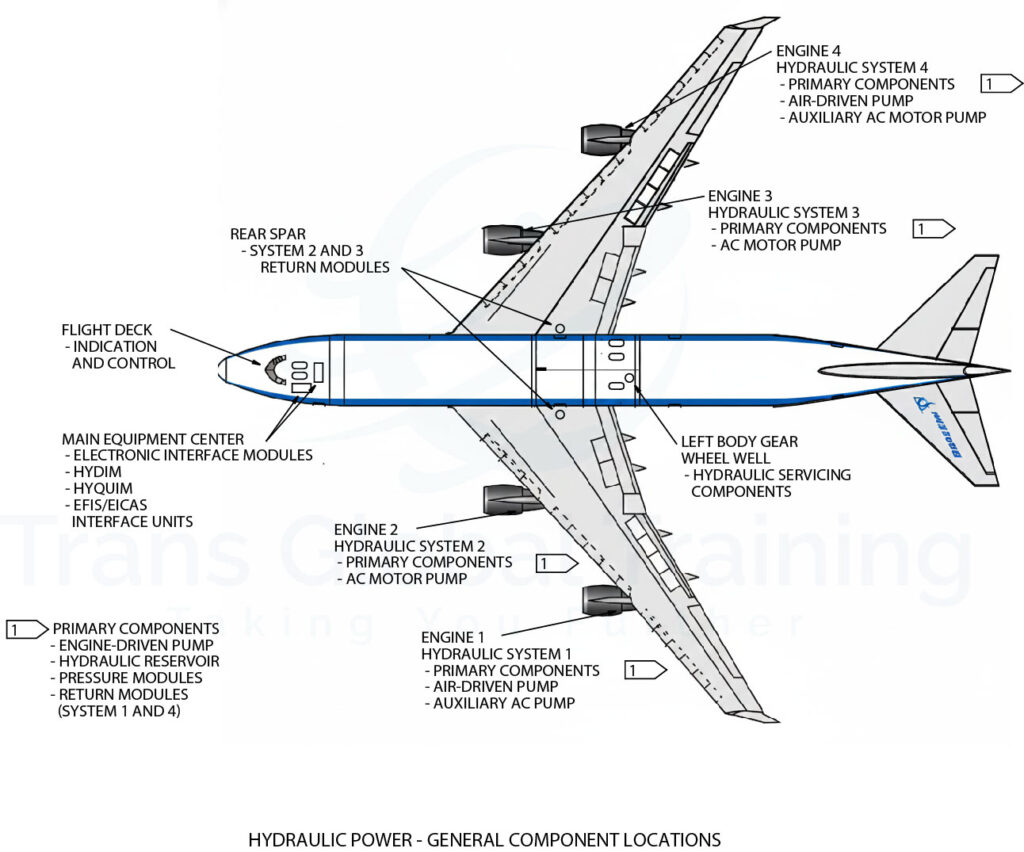

The Hydraulic Power System in the Boeing 747-400 reflects this evolution on a grand scale. The aircraft uses multiple independent hydraulic systems, each capable of supplying high-pressure fluid power to critical components. This design is not simply about performance—it is about safety. Large aircraft must continue operating even if one system is damaged or fails, and the 747-400’s hydraulic architecture is built around redundancy and separation.

At the core of the system are powerful pumps that generate hydraulic pressure. Engine-driven pumps provide the primary source of hydraulic power during flight, converting mechanical energy from the engines into fluid pressure. However, the aircraft does not rely on engines alone. Demand-driven pumps, including air-driven and electrically powered units, can automatically supply hydraulic pressure when needed. This ensures that essential services remain available during abnormal conditions, such as engine shutdowns or high-demand phases like landing.

Hydraulic fluid is stored in pressurised reservoirs, carefully designed to prevent cavitation, contamination, or fluid starvation. From these reservoirs, hydraulic power is distributed through a network of pipes, valves, and control modules that route pressure to the systems that need it most. Heat exchangers help manage fluid temperature, because hydraulic efficiency depends heavily on maintaining stable operating conditions.

What makes the Hydraulic Power System in the Boeing 747-400 particularly fascinating is its scale. The aircraft’s flight control surfaces are enormous, and moving them smoothly requires tremendous force. Hydraulics power the primary flight controls, including ailerons, elevators, and rudders, allowing precise handling despite the aircraft’s size. The same hydraulic power also drives the extension and retraction of the complex multi-bogie landing gear, as well as the braking system capable of stopping hundreds of tonnes of aircraft on a runway.

The philosophy behind this design is resilience. By dividing hydraulic power into multiple systems and providing backup pump sources, the 747-400 ensures that no single failure can remove control authority. Even under degraded conditions, the aircraft retains sufficient hydraulic capability to continue safe flight and landing.

Looking to the future, hydraulic systems remain essential, but aviation is gradually shifting toward “more-electric” architectures. New aircraft increasingly use electrically driven actuators and hybrid systems to reduce weight, improve efficiency, and simplify maintenance. Electro-hydrostatic actuators and advanced digital monitoring are already shaping the next generation of aircraft design.

Still, the Hydraulic Power System in the Boeing 747-400 stands as one of the most impressive examples of classic widebody engineering. It represents the peak of hydraulic aircraft design: powerful, redundant, and built to keep one of the world’s most iconic aircraft flying safely across the globe.
