Clear and reliable communication remains one of the fundamental pillars of aviation safety. The Embraer E170/E190 Speech Communications System ensures precise, dependable voice interactions within the cockpit, with cabin crew, between aircraft, and between aircraft and ground stations. Leveraging sophisticated technology, this system helps pilots and cabin crew maintain seamless communication, even under challenging operational conditions.

Evolution of Aircraft Speech Communication Systems

Speech communications technology in aviation has transformed significantly from early hand-held radios to today’s integrated digital systems. Early aircraft communications were rudimentary, providing limited range and clarity. Modern systems, such as those on the Embraer E170/E190, offer crystal-clear voice communication with robust redundancy, effectively reducing misunderstandings and enhancing operational safety.

How the Embraer E170/E190 Speech Communications Works

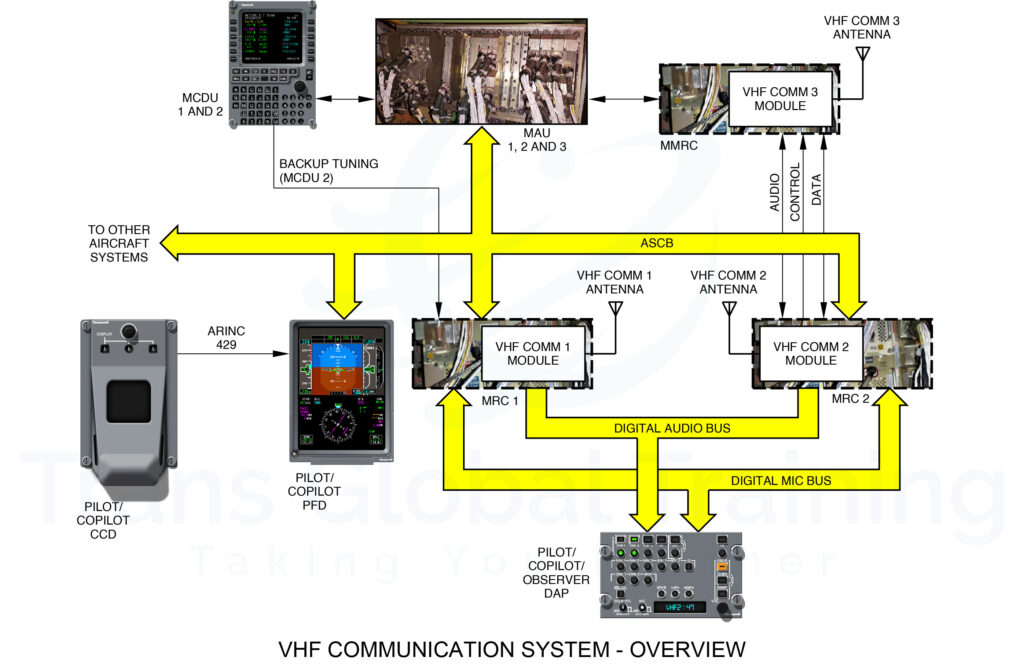

Central to the Embraer E170/E190 Speech Communications system is its Very High Frequency (VHF) Communications subsystem. Operating in the standard aviation frequency range of 118.000 to 136.975 MHz, the system facilitates two-way voice communication between the aircraft and ground stations, and between aircraft in flight. The system employs amplitude modulation (AM), ensuring consistent voice clarity throughout communications.

Each aircraft is equipped with three independent VHF communication modules (VHF COMM modules). These modules are strategically installed: module one is located in the forward avionics compartment, module two in the mid avionics bay, and module three in the aft avionics compartment. Each module connects to dedicated omnidirectional VHF antennas, strategically positioned for optimal communication coverage, ensuring uninterrupted communication with ground stations and other aircraft.

Tuning and Controlling the System

The Embraer E170/E190 pilots primarily manage the speech communications system through the Multifunction Control Display Units (MCDUs) located in the cockpit centre pedestal. These MCDUs allow the pilots to effortlessly select and adjust active and preset frequencies, activate squelch features, and switch between voice and data modes as needed.

For additional flexibility, secondary tuning can be achieved through the Cursor Control Device (CCD) and Primary Flight Displays (PFD). This dual-control interface guarantees redundancy, enabling quick frequency changes and adjustments, significantly simplifying pilot tasks, especially during critical phases of flight.

Safety and Operational Advantages

Reliable speech communications dramatically enhance flight safety, ensuring pilots clearly receive critical instructions from air traffic control and ground services. With built-in redundancies, including multiple VHF communication modules and dedicated backup circuits, the system guarantees continuous and reliable communication even if one component fails.

Moreover, the system includes automatic safety features, such as a transmitter time-out circuit, preventing extended accidental transmissions that could compromise radio communications for other aircraft.

Looking Ahead: Speech Communications in Aviation

Speech communications technology continues to evolve, integrating advanced digital systems, data-link capabilities, and satellite-based communications, which offer increased reliability, clearer audio quality, and greater global reach. Aircraft like the Embraer E170/E190 already exemplify this future vision, providing pilots and crew with a reliable and user-friendly communications environment, ensuring safe and efficient operations.

The Embraer E170/E190 Speech Communications System stands as a testament to modern aviation communication technology, continuously ensuring clear, reliable voice communication in the demanding aviation environment.
