From the earliest days of flight, pilots have sought reliable ways to automate aircraft control, improving precision and reducing workload. The Embraer E170/E190 Flight Guidance and Control System (FGCS) represents a significant milestone in aviation, combining cutting-edge technology with user-friendly features that streamline operations and enhance safety.

A Brief History of Flight Guidance Systems

The journey towards automated flight began in the early 20th century with basic autopilots capable of maintaining simple headings and altitudes. Over the decades, these systems evolved dramatically, integrating advanced electronic sensors and complex computational abilities, paving the way for today’s highly sophisticated Flight Guidance and Control Systems. Modern systems, such as those aboard the Embraer E-Jet family, seamlessly manage multiple flight parameters, providing precise aircraft guidance and significantly reducing pilot workload during critical flight phases.

Understanding the E170/E190 Flight Guidance and Control System

The Embraer E170/E190 FGCS is part of the aircraft’s Automatic Flight Control System (AFCS), designed to deliver accurate, smooth, and reliable flight management. This comprehensive system integrates essential functions such as Flight Director (FD) guidance, autopilot control, yaw damping, turn coordination, automatic pitch trim, Mach trim, and autoland capability.

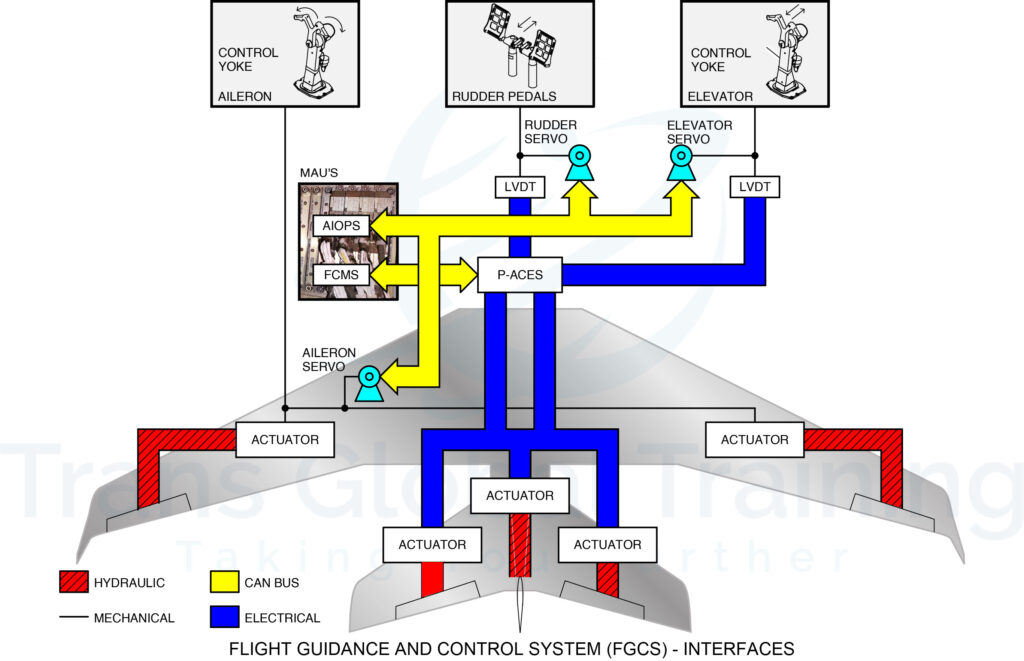

At the core of the system are four Actuator Input-Output Processor (AIOP) modules, located within the aircraft’s Modular Avionics Units (MAUs). These modules process flight data and communicate directly with control surfaces through the CAN (Controller Area Network) bus, enabling precise adjustments to the aileron, elevator, and rudder servos. This dual-channel architecture operates in an active-standby arrangement, ensuring seamless continuity if a fault is detected.

How the System Enhances Flight Operations

The autopilot component of the FGCS significantly enhances operational efficiency by automatically managing pitch and roll, commanding the servos linked to the control columns and yokes. This automatic management ensures stable and accurate flight trajectories, reducing the pilot’s manual workload, especially in challenging weather conditions or congested airspaces.

In parallel, the yaw damper function independently maintains smooth directional control by eliminating unwanted lateral oscillations (Dutch roll) and ensuring coordinated turns. The Embraer E170/E190 further optimises stability through its automatic pitch trim and Mach trim functions, adapting to aerodynamic changes and enhancing passenger comfort during all flight phases.

Advanced Safety and Operational Features

One of the standout features of the E170/E190 FGCS is its autoland capability, offering automated precision landing guidance, even under conditions of very low visibility. The system automatically aligns the aircraft with the runway centreline, adjusting rudder and aileron inputs to counter crosswinds effectively, ensuring a smooth, safe touchdown.

The FGCS also incorporates comprehensive monitoring and fault isolation capabilities. Each channel independently monitors the other’s data, swiftly identifying discrepancies. This redundancy guarantees that a single failure will never compromise the overall control capability, maintaining the highest standards of safety.

The Future of Flight Guidance and Control

Looking ahead, systems like the Embraer E170/E190 FGCS will continue evolving, with increased use of artificial intelligence and machine learning to enhance predictive maintenance and further optimise flight paths. These advancements promise even greater efficiency, reduced operational costs, and improved passenger experiences.

In essence, the Embraer E170/E190 Flight Guidance and Control System showcases a harmonious blend of precision, safety, and technological sophistication—setting new standards in the skies.
