Introduction

Aircraft cargo holds present a significant fire risk due to the presence of lithium batteries, flammable materials, and other hazardous goods. The ability to detect smoke early is crucial in preventing onboard fires. The Boeing 767 is equipped with an advanced cargo compartment smoke detection system, designed to provide rapid alerts to the flight crew, ensuring swift action can be taken to mitigate risks.

The importance of cargo fire detection systems became evident through incidents like UPS Flight 6 (2010), where a cargo fire caused by lithium batteries led to the aircraft crashing near Dubai. Following such incidents, fire detection and suppression systems have been continuously improved to enhance aviation safety.

How the Boeing 767 Cargo Compartment Smoke Detection System Works

The cargo compartment smoke detection system on the Boeing 767 is designed to monitor air quality within the cargo holds. If smoke is detected, the system triggers alarms to alert the crew, allowing them to take immediate action.

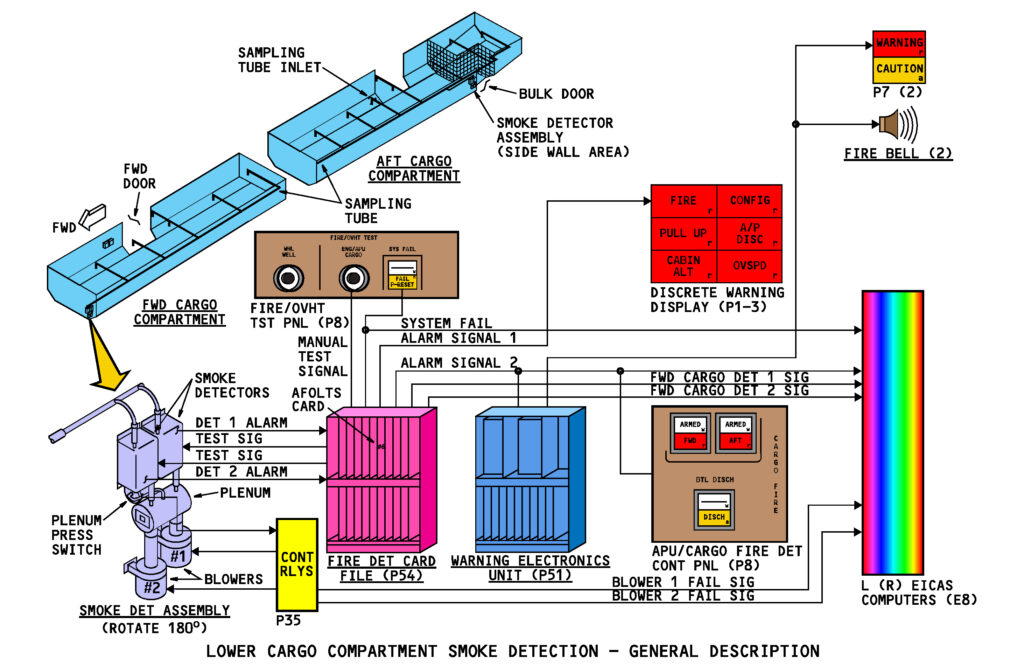

Key Components:

• Smoke Detectors: Each cargo compartment is fitted with multiple photoelectric smoke detectors that continuously monitor air samples.
• Air Sampling System: Uses suction fans and ducting to draw air from the cargo hold into the smoke detection chambers.
• EICAS Alerts: If smoke is detected, the Engine Indicating and Crew Alerting System (EICAS) displays a “CARGO SMOKE” warning.
• Fire Suppression System: The Boeing 767 is equipped with Halon fire extinguishers, which can be discharged into the cargo compartment if smoke is detected.
• Test Panel: Allows ground crews to check the functionality of the smoke detection system.

Detection Process:

1. Airflow Monitoring: Air from the cargo compartment is continuously sampled and analyzed.
2. Smoke Detection: If particles consistent with smoke are identified, an alert is sent to the flight deck.
3. Crew Action: Pilots follow fire suppression procedures, which include shutting down ventilation to the affected area and deploying the fire extinguishing system.
4. Ongoing Monitoring: The system continues to monitor for additional smoke, ensuring the fire is fully suppressed.

Real-World Incidents: Cargo Smoke Detection in Action

The necessity of cargo compartment smoke detection has been demonstrated in multiple incidents:

UPS Flight 6 (2010)

• Summary: A Boeing 747-400F operated by UPS crashed near Dubai due to an uncontrollable fire caused by lithium batteries in the cargo hold. The crew received multiple fire warnings but were unable to contain the blaze.
• Report Link: Read the official GCAA accident report here

Swissair Flight 111 (1998)

• Summary: Although not a cargo-related fire, the in-flight electrical fire aboard a McDonnell Douglas MD-11 reinforced the need for early smoke detection and suppression improvements.
• Report Link: Access the Transportation Safety Board of Canada’s report here

Testing and Maintenance of the Cargo Smoke Detection System

To ensure reliability, the Boeing 767 cargo smoke detection system undergoes routine checks and testing:

• Functional Testing: Simulated smoke is introduced into the system to verify alarm activation.
• Airflow System Inspection: Ensures that the sampling system is free of blockages.
• Sensor Calibration: Smoke detectors are checked for accuracy and sensitivity.
• Fire Extinguisher Pressure Check: The Halon bottles are inspected to ensure they are fully charged and ready for deployment.

Future Developments in Cargo Fire Detection

As technology advances, cargo fire detection systems are evolving to include:

• Advanced Air Sampling Technologies: Improving sensitivity and reducing false alarms.
• AI-Based Fire Prediction Models: Predicting fire risks based on cargo composition and environmental conditions.
• Non-Halon Fire Suppression: Exploring alternative fire suppressant agents that are more environmentally friendly.

Conclusion

The Boeing 767 cargo compartment smoke detection system plays a vital role in aircraft safety, offering early detection and response capabilities to prevent catastrophic cargo fires. By integrating advanced sensors, EICAS alerts, and Halon-based suppression systems, the aircraft ensures a high level of protection. As fire detection technology continues to evolve, future advancements will further enhance aviation safety.
