A Thrust of Innovation: From Manual Levers to Digital Precision

In early jetliners, thrust control was entirely manual—pilots relied on gauges, muscle memory, and experience to set engine power. The development of autothrottle systems in the 1960s and 70s marked a major leap forward, reducing workload and improving performance, especially during climb, cruise, and approach. The Boeing 757 brought a new level of automation with its Thrust Management Computer (TMC), blending precise throttle movement with advanced performance calculations from the Flight Management System (FMS).

This evolution was not just about comfort; it was about safety and efficiency. The 757’s system has supported pilots during rejected takeoffs, engine-out climbs, and low-visibility landings, ensuring consistent thrust performance in critical moments.

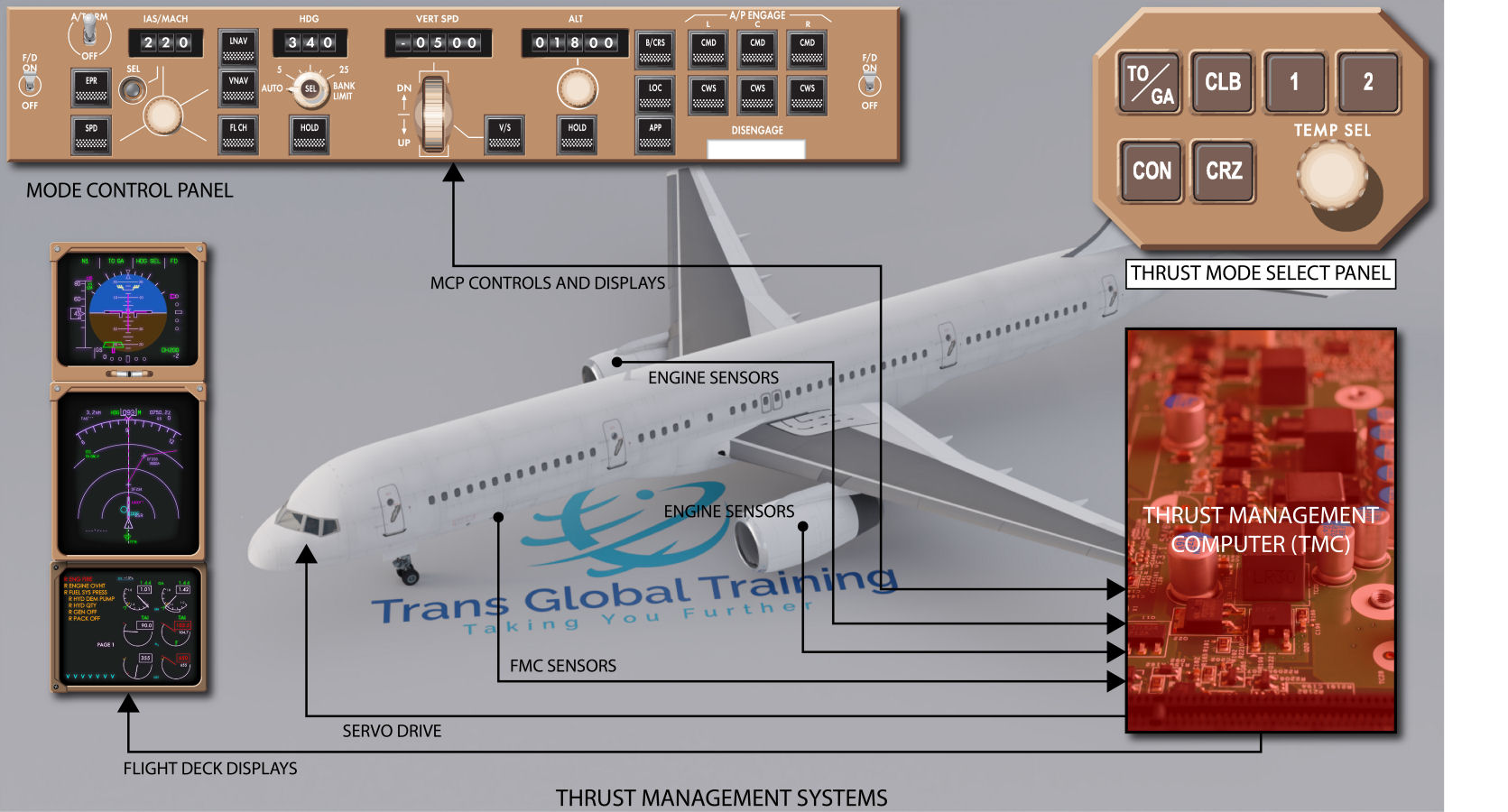

System Description and Architecture

At the heart of the Boeing 757’s thrust control is the Thrust Management Computer (TMC), a dedicated processor that works with the Autopilot Flight Control System (AFCS) and Flight Management Computer System (FMCS). It performs two primary functions:

1. Thrust Limit Calculation: Establishes maximum thrust settings for various flight phases (e.g., TO, CLB, CRZ, GA) and displays them on the upper EICAS as the thrust reference.
2. Autothrottle Control: Automatically adjusts the throttles to achieve selected or computed thrust targets.

These modes are engaged via the Thrust Mode Select Panel (TMSP) or through VNAV mode in the FMS. For manual input, the Mode Control Panel (MCP) is used to select autothrottle speed or thrust modes, provided the A/T ARM switch is active.

Modes and Functions

• Thrust Limit Modes: TO, GA, CLB, CRZ, CON, and MCT are displayed on the EICAS. These limits are always active and define the boundary for autothrottle operation.
• Autothrottle Modes: SPD, THR, VNAV, FLCH, and GA, among others, can be engaged for various segments of flight. The active mode is annunciated on the EADI.

A critical safety feature is that the system does not allow autothrottle engagement unless properly armed via the MCP, ensuring positive pilot control and clear mode logic.

Components and Interfaces

• Thrust Management Computer (TMC): Performs thrust limit and autothrottle calculations.
• Autothrottle Servos: Receive commands from the TMC and physically move the throttle levers.
• EICAS: Displays thrust mode, thrust limit, and any system faults or disconnects.
• A/T Disconnect Switches and GA Switches: Located on each thrust lever for pilot override.

A feedback system monitors thrust lever position, engine tachometers (N1), and servo performance, providing continuous validation.

Testing and Fault Detection

The TMC communicates with the Maintenance Control and Display Panel (MCDP). After landing, faults are automatically stored and can be reviewed by maintenance crews. Ground testing includes servo response, disconnect detection, and system fault analysis.

The Future of Thrust Automation

Though the Boeing 757’s thrust management system is robust, newer designs like those in the 787 and A350 have integrated Electronic Engine Control (EEC) directly with autothrottle logic, allowing even finer control and reducing separate components. However, the 757 remains respected for its clear annunciation logic and pilot-friendly interfaces.
