A Legacy of Precision: The Evolution of Autopilot Systems

Autopilot systems have come a long way since their origins in the early 20th century. Early designs could only maintain heading or altitude using gyroscopic feedback. As aviation evolved, so did the complexity of these systems—incorporating pitch, roll, yaw control, and eventually becoming integrated with navigation systems. By the time the Boeing 757 was introduced in the early 1980s, autopilot and flight director systems had matured into reliable, multi-channel digital architectures capable of handling all phases of flight, including autoland.

The Boeing 757’s Autopilot Flight Director System (AFDS) represents a critical advancement in autoflight technology. It has even played a role in real-world events—such as its use in automatic landings during low-visibility operations—highlighting its capability and reliability under demanding conditions.

System Overview and Architecture

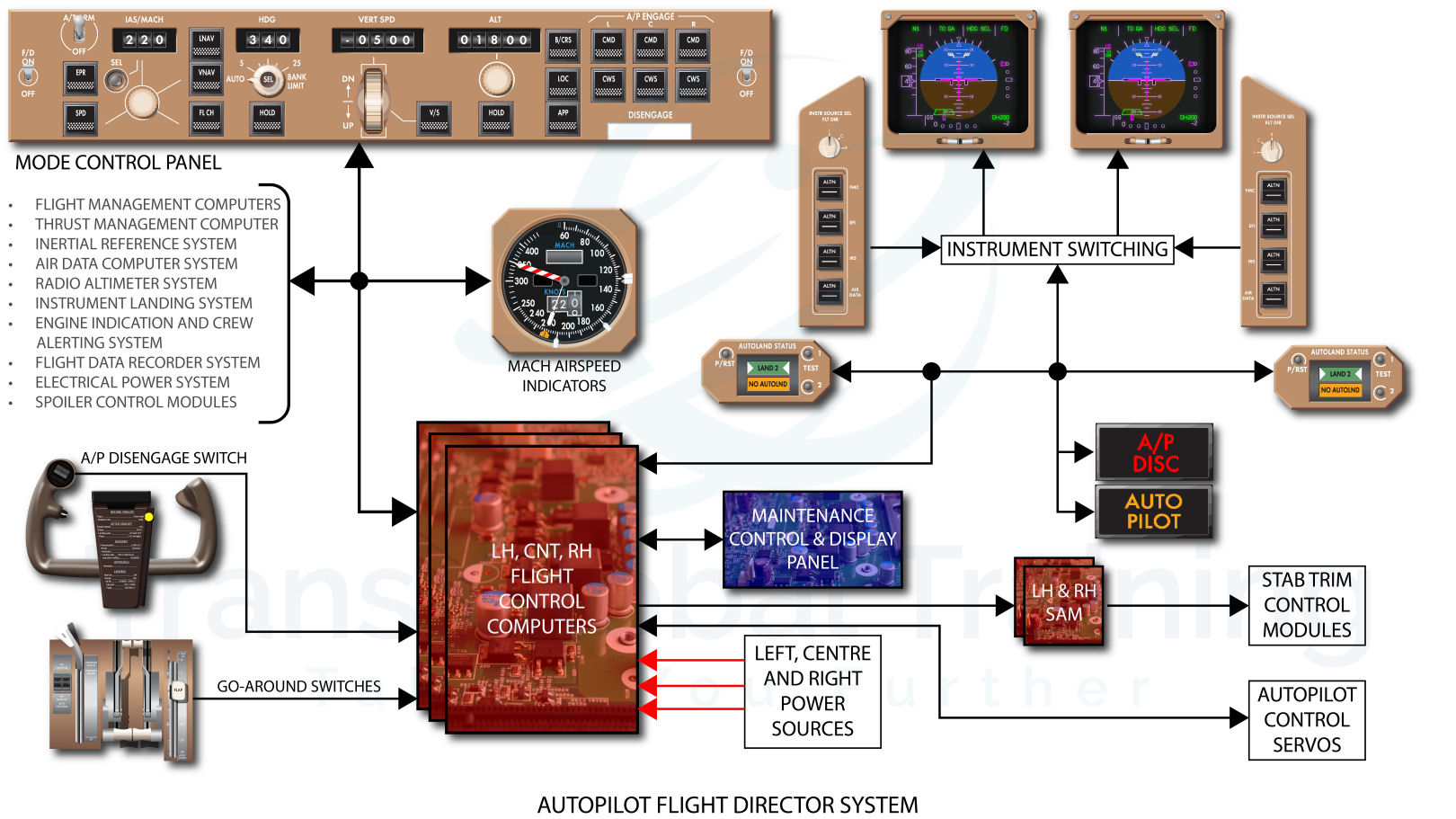

The Boeing 757 uses a triple-channel AFDS that interfaces with major flight control surfaces: ailerons, elevators, and (during autoland) the rudder. The system includes the Mode Control Panel (MCP) located on the glareshield, used to select modes and engage autopilot and flight director functions. Visual feedback is provided through the Electronic Attitude Director Indicator (EADI) and Flight Mode Annunciator (FMA).

Flight path guidance is calculated by three Flight Control Computers (FCCs). These computers receive data from the inertial reference system, air data computers, and flight management system. The FCCs command servos to move the flight control surfaces via hydraulic power, while also feeding pitch and roll cues to the flight directors.

The system operates in multiple modes, including heading select, LNAV/VNAV, altitude hold, flight level change, and autoland—each annunciated on the FMA. During autoland, the system uses all three FCCs in multichannel mode to ensure redundancy and precision, engaging additional servos for rollout guidance.

Key Components and Functions

• Mode Control Panel (MCP): Allows selection and engagement of all AFDS and autothrottle modes.
• Flight Control Computers (3): Process navigation and attitude data to command flight controls.
• Flight Director: Displays vertical and lateral guidance bars on the EADI for manual or automatic tracking.
• Servos: Control aileron, elevator, and rudder surfaces via hydraulic actuators based on FCC commands.
• Annunciations: Include caution lights like AUTOPILOT (amber) and A/P DISC (red) to warn of disengagements.

The system is designed to be fail-operational during autoland, meaning it can complete the landing even after one FCC fails. Additionally, the Autoland Status Annunciator (ASA) informs the crew of current landing capability status.

Testing and Maintenance

The Boeing 757 AFDS is equipped with a Maintenance Control and Display Panel (MCDP). After landing, the system automatically logs any faults encountered during flight. Ground testing can be performed using the MCDP to verify system integrity and troubleshoot issues.

Looking Ahead

While the Boeing 757 AFDS remains a benchmark in commercial autoflight reliability, newer aircraft incorporate even tighter integration with satellite-based navigation, enhanced flight envelope protection, and touchscreen control interfaces. Nonetheless, the 757’s system continues to prove its robustness, often compared favourably to modern equivalents for its intuitive layout and dependable multichannel logic.
