Communication has always been an essential pillar of flight safety, from the days of hand-held “wireless telegraphy” sets to the sophisticated digital systems we see today. The Airbus A220 Radio Management System continues this tradition by integrating advanced technology, intuitive interfaces, and seamless redundancy to keep pilots connected to air traffic control, cabin operations, and any support services on the ground. By effectively managing all communication and navigation frequencies, the Airbus A220 Radio Management System ensures that flight crews have clear, reliable channels for every phase of flight, solidifying its crucial role in modern aviation.

A Brief Look at the Evolution of Radio Management

Radio communication in aviation began with basic amplitude modulation (AM) transmitters, which could cover only a limited frequency range. Over time, improvements in radio technology and frequency allocation allowed for clearer signals across larger distances. By the 1950s and 1960s, more advanced Very High Frequency (VHF) communication radios became standard, offering sharper, more dependable sound quality. Soon, aircraft also integrated High Frequency (HF) systems for oceanic and remote-area coverage. As avionics expanded, flight decks added multi-purpose control heads, enabling pilots to switch quickly between different nav and comm frequencies.

In the digital era, radio tuning gained far more flexibility and redundancy thanks to microprocessors, data buses, and graphical interfaces. Systems could automatically set frequencies from a flight management database or pilot prompts. This evolution is mirrored in the Airbus A220 Radio Management System, which boasts cutting-edge reliability and an integrated approach to handling all onboard communication and navigation radios.

Components and Functionality

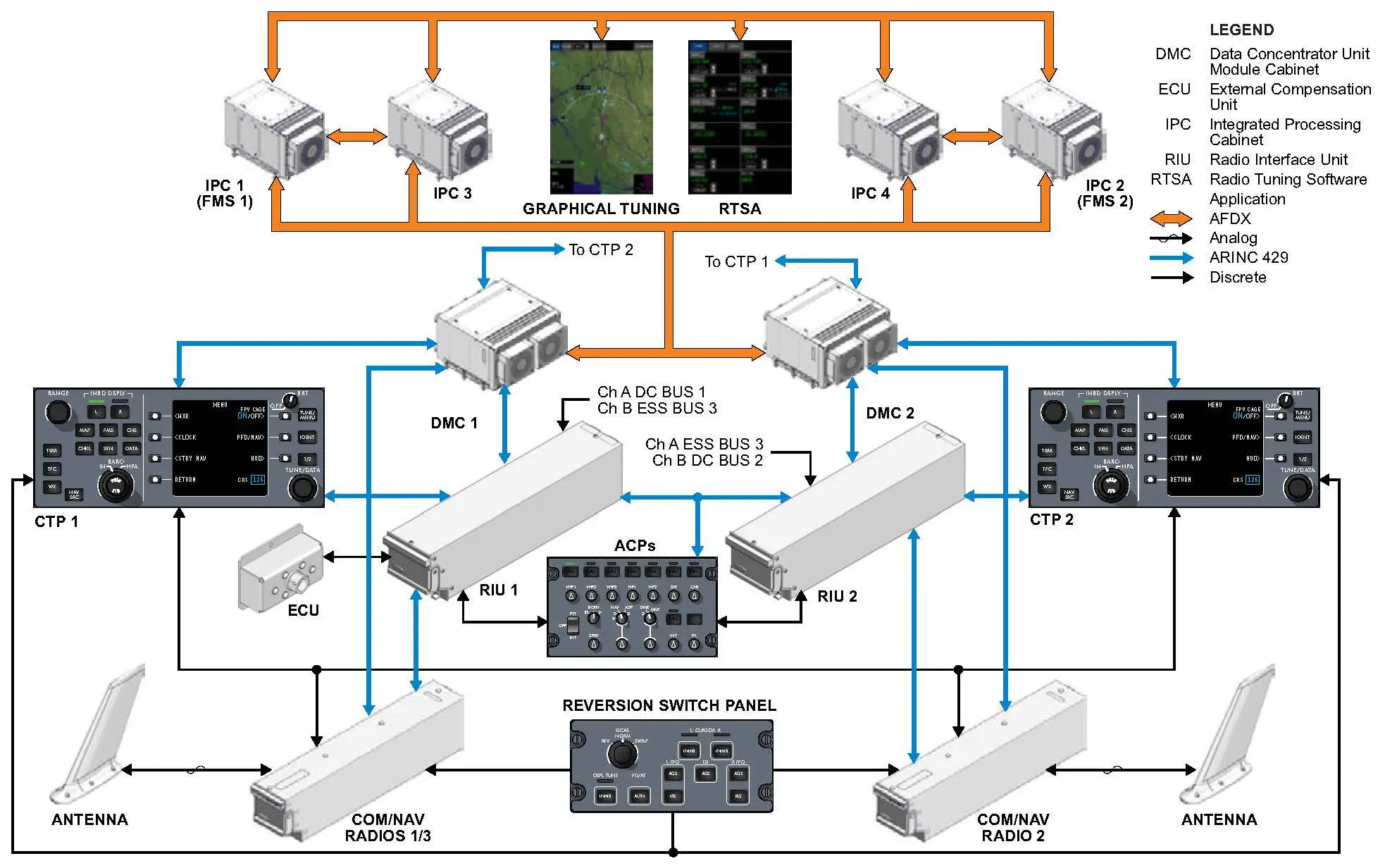

At the heart of the Airbus A220 Radio Management System are two dual-channel Radio Interface Units (RIUs). These work in tandem with Control Tuning Panels (CTPs), a Radio Tuning System Application (RTSA), and sophisticated graphical displays. The RIUs handle everything from VHF communication and navigation radio tuning to digital audio processing for aural alerts. Each pilot has a CTP on the glareshield, giving them full control over frequency selection, radio mode changes, and selective calling (SELCAL) for precise remote station identification.

A vital aspect of the A220’s RMS design is its built-in redundancy. If one CTP or RIU channel fails, the system automatically shifts priority to ensure continuous access to essential communications. Even in the rare event that both CTPs fail, the radios revert to emergency modes such as the 121.5 MHz distress frequency, guaranteeing the flight crew can still communicate with air traffic services.

Benefits and Unique Features

One of the standout features of the Airbus A220 Radio Management System is its SELCAL functionality. When a ground station transmits a specific set of audio tones matching the aircraft’s assigned SELCAL code, the system emits an alert and illuminates a call light on the Audio Control Panel. This way, pilots know exactly when they’re being contacted without actively monitoring the radio frequency—an enormous boon on long flights with congested communications.

Graphical tuning adds another layer of convenience. Via the aircraft’s displays or the Control Tuning Panel, flight crews can see and adjust radio frequencies, transponder codes, and navigation aids with minimal fuss. By providing both digital and analog audio channels, the RMS also ensures the signals remain clear, even in situations requiring backup audio paths.

The Future of Radio Management Systems

Radio management will only become more sophisticated as the aviation industry continues to embrace automation and data-driven operations. We can expect more integrated solutions combining satellite and ground-based communication, real-time inflight data sharing, and expanded self-healing functionalities. The Airbus A220 Radio Management System already foreshadows these advancements with its robust design and forward-thinking architecture, proving how modern aircraft can unify technology, safety, and convenience in a single, streamlined package.
