Aircraft safety relies heavily on swift detection and response to potential onboard fires. The Airbus A220 Fire Detection and Extinguishing System exemplifies how modern jets use advanced sensors, logic, and automated functions to protect passengers and crew from fire hazards. By combining dual-loop fire and smoke sensors, dedicated extinguishers, and integrated control units, this next-generation system delivers rapid detection and timely suppression across multiple aircraft zones.

Evolution of Fire Detection Technology in Aviation

Historically, fire protection in aircraft began with basic thermal sensors and rudimentary extinguishers. As jet travel expanded, manufacturers introduced more sophisticated detection loops, integrating cockpit alerts to guide pilot response. By the late 20th century, commercial airliners were adopting dual-loop setups—where two sensors in each zone had to detect heat or smoke before triggering a fire warning. This minimized the chance of false alarms. Today, the Airbus A220 Fire Detection and Extinguishing System takes these principles even further, incorporating a Fire Detection and Extinguishing (FIDEX) control unit that can automate suppression in certain conditions, such as an Auxiliary Power Unit (APU) fire when the aircraft is on the ground.

Key Components and Functionality

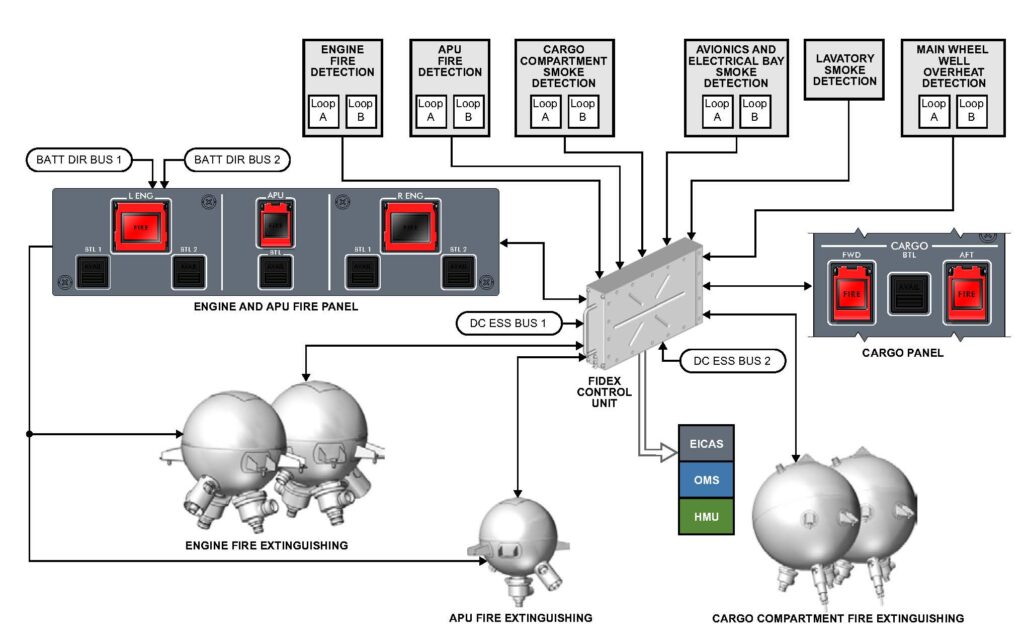

At the heart of the Airbus A220 Fire Detection and Extinguishing System is the FIDEX control unit, powered by two independent channels for redundancy. Each channel is fed by separate DC essential busses, ensuring it remains active even if one power source fails. This control unit manages several critical elements:

1. Engine Fire Detection and Extinguishing:
   Dual-loop heat sensors in each engine nacelle detect abnormal temperature rises. If both loops agree that a fire is present, a cockpit panel Fire Push Button Annunciator (PBA) illuminates, prompting pilot action. Pulling the fire handle shuts down the engine’s fuel supply and isolates other lines, while pressing the associated “BTL” (bottle) button discharges a fire bottle into the nacelle.
2. APU Fire Detection and Automatic Shutdown:
   Similar dual-loop sensors monitor the APU. If a fire is detected on the ground, the system can automatically shut down the APU after 10 seconds and discharge the extinguisher if the pilot does not intervene.
3. Cargo Compartment and Avionics Bay Smoke Detection:
   Cargo and avionics smoke detectors use dual-loop “AND” logic, reducing false alarms. If smoke is confirmed, the appropriate CARGO FIRE PBA illuminates on the overhead panel. Pressing the PBA launches a high-rate bottle discharge, followed by a low-rate bottle to maintain suppression.
4. Main Wheel Well and Lavatory Detection:
   An overheat condition in the main wheel well triggers cockpit alerts for potential tire or brake fires. Lavatory smoke detectors provide early warning of any fire in that confined space.

When a fire or smoke condition arises, the system immediately displays the alert on the flight deck, illuminating PBAs while generating Crew Alerting System (CAS) messages. It simultaneously logs the fault in the Onboard Maintenance System (OMS) for diagnostic follow-up.

Benefits and Unique Features

By relying on dual-loop logic, the Airbus A220 Fire Detection and Extinguishing System virtually eliminates false positives. The architecture allows the FIDEX control unit to revert to single-loop functionality if one loop fails—preserving fire detection capabilities. Automatic APU fire discharge on the ground offers a robust safeguard for unmanned aircraft on the ramp. Additionally, essential design features—like powering the fire bottles from direct battery busses—ensure extinguishing is available even in the event of significant electrical failures.

Looking Ahead

As avionics continue to advance, fire detection systems are poised to become even more integrated with predictive analytics and aircraft health monitoring. In the future, sensors may work alongside advanced analytics to spot early signs of overheating or leaks, mitigating the risk of fires well before alarms need to sound. For now, the Airbus A220 Fire Detection and Extinguishing System provides a gold standard in automated fire protection, reinforcing the aircraft’s reputation for safety and reliability.
