Fire safety is a paramount concern in aviation, and nowhere is it more critical than within an aircraft’s engine compartments. The Airbus A220 engine fire extinguishing arrangement showcases a modern, carefully engineered approach to mitigating fire risk. By using dedicated fire bottles, high-speed detection, and well-placed nozzles, the system can swiftly suppress potential engine fires—giving flight crews and passengers an added layer of safety.

Evolution of Engine Fire Protection

Aircraft manufacturers have continuously refined engine fire protection systems over the decades. Early designs primarily relied on a single extinguisher bottle per engine, with basic sensors to detect abnormal heat. As engine and airframe technology advanced, so too did fire protection methods. Engineers introduced multiple sensors or “loops” for redundancy, ensuring reliable detection without false alarms. More recently, modern jets like the Airbus A220 have adopted dual fire bottles that can both target one engine or be split between two engines, enhancing the ability to suppress persistent fires or fires in multiple compartments.

Core Components and Configuration

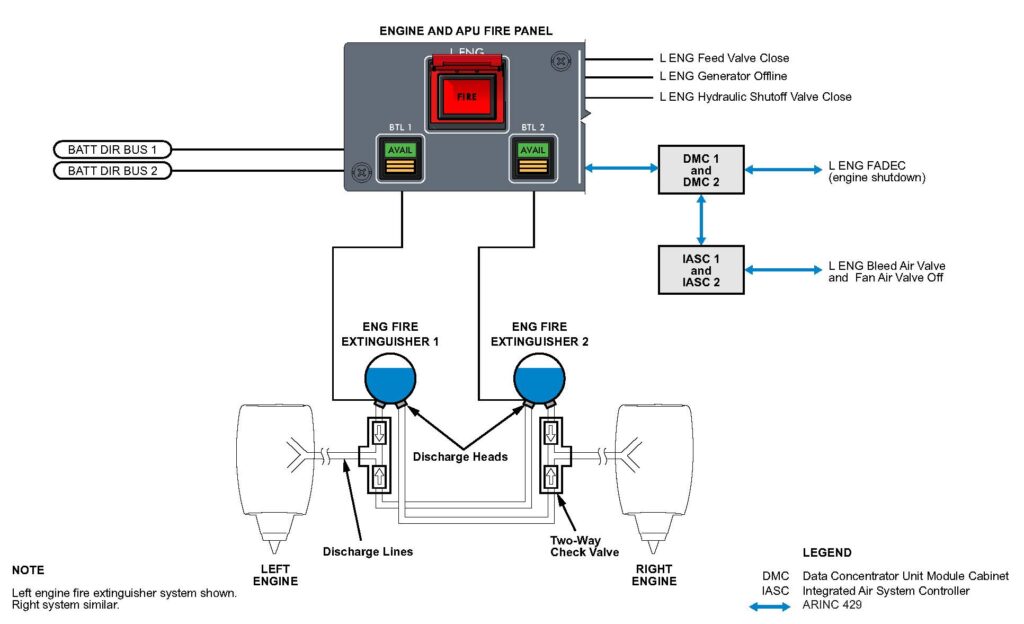

The Airbus A220 engine fire extinguishing setup comprises two identical fire extinguishers (often referred to as bottles) mounted on the aircraft’s aft spar near the wing-to-body fairing. Each bottle contains Halon 1301, an agent long recognized for its efficacy in extinguishing engine fires. A high-pressure nitrogen charge propels the agent through:

1. Discharge Heads: Each bottle features two separate discharge heads, each equipped with an electrically actuated cartridge (or squib).
2. Two-Way Check Valves: These valves route the Halon to either the left or right engine, depending on which discharge head is fired.
3. Distribution Lines and Nozzles: The extinguishing agent is routed along the pylon and directed into the engine core compartment, where it rapidly suppresses flames.

Detection and Pilot Interface

Dual-loop sensors within the engine nacelle detect any temperature spikes beyond normal operating ranges, prompting the Fire Detection and Extinguishing (FIDEX) control unit to illuminate the cockpit’s ENGINE FIRE pushbutton annunciator (PBA). When the pilot presses this FIRE pushbutton, multiple actions occur simultaneously:

• Isolation: The engine’s fuel, hydraulic, and bleed air lines are closed off to prevent the spread of fire or fuel.
• Generator Trip: The affected engine’s generator is taken offline.
• Engine Shutdown Command: A signal is sent to the Full Authority Digital Engine Control (FADEC) to shut down the engine.
• Bottle Arming: The fire extinguisher cartridges are prepared for discharge.

Once armed, each extinguisher bottle is activated by pressing the corresponding BTL pushbutton. Cartridge “bridge wires” fire the squib, sending the agent into the engine. If the fire persists, or the pilot deems an additional discharge necessary, they can use the second bottle to direct further extinguishing agent into the same engine.

Redundancy and Safety Benefits

A key advantage of the Airbus A220 engine fire extinguishing design lies in its redundancy. Each cartridge has two independent electrical circuits, powered by separate battery direct busses—ensuring that at least one circuit can energize the cartridge if the other fails. Moreover, if a bottle is accidentally under-pressurized or discharges abnormally, pilots receive alerts on the Engine Indication and Crew Alerting System (EICAS), allowing for quick troubleshooting and decision-making.

By having two bottles with dual outlets, the A220 can address a wide range of fire scenarios—either splitting resources between left and right engines or doubling down on one engine if needed. This flexibility, combined with advanced detection and cockpit alerts, elevates overall engine fire safety.

Final Thoughts

As engine performance envelopes grow and modern jets push into new operating efficiencies, effective fire suppression remains a cornerstone of aviation design. The Airbus A220 engine fire extinguishing system exemplifies how a balance of redundancy, rapid detection, and intuitive pilot controls can secure passenger and crew well-being. In an emergency, every moment counts, and this carefully integrated system ensures immediate, decisive response—reinforcing the A220’s reputation for safety and innovation.
