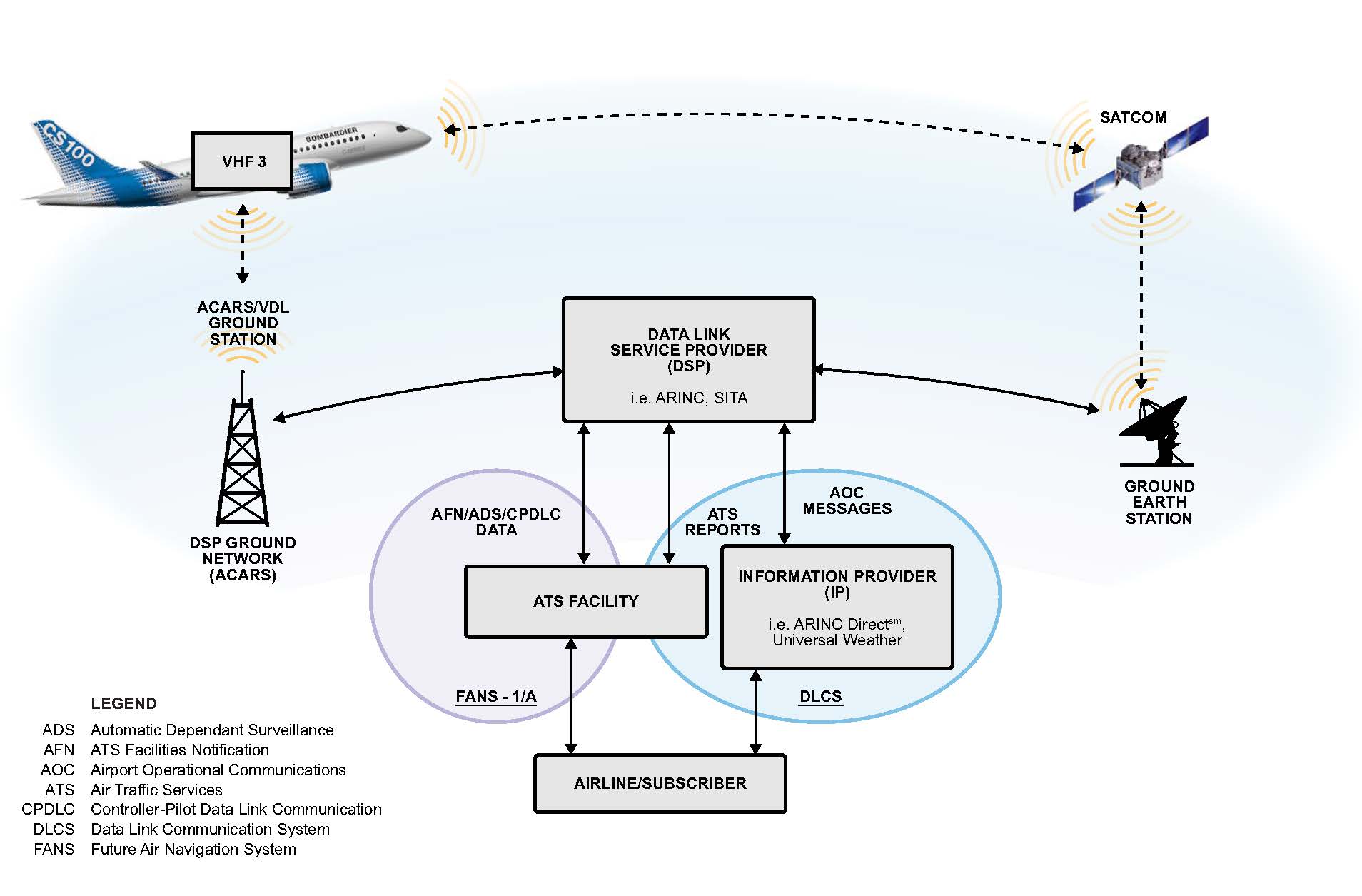

Modern aviation demands an ever-increasing flow of data—weather updates, flight plan adjustments, performance metrics, and more. To meet this need, the Airbus A220 Airborne Data Link seamlessly integrates ground-based networks with onboard systems, enabling real-time communication for flight crews, airline dispatch, and air traffic control. By harnessing technologies like ACARS (Aircraft Communications Addressing and Reporting System), VHF digital link (VDL), and optional CPDLC (Controller-Pilot Data Link Communications), the A220’s data link suite pushes operational efficiency and situational awareness to new heights.

A Brief History of Data Link in Aviation

Data link communication began as an extension of basic radio transmissions. Early systems simply sent short text messages via ground stations, primarily for airline operational updates such as flight schedules or dispatch instructions. Over time, these networks expanded to include digital message formats (e.g., ACARS) which enabled more precise, robust data transfer—everything from weather notifications to maintenance records. The International Civil Aviation Organization (ICAO) further advanced the concept with CPDLC, allowing pilots and air traffic controllers to exchange operational messages in busy or oceanic airspace. The Airbus A220 Airborne Data Link integrates these developments, embedding sophisticated applications that underscore the aircraft’s next-generation capabilities.

Core Components and Functionalities

The Airbus A220 Airborne Data Link relies on multiple hardware and software elements working together:

1. Radio Interface Unit (RIU):
   RIU 1 hosts a communication management unit (CMU), acting as a router for ACARS and other digital messages. This setup allows for two-way messaging via VHF COM 3, supporting VDL Mode 2. An optional Iridium SATCOM system extends coverage beyond VHF range for truly global connectivity.
2. External Compensation Unit (ECU):
   This module stores aircraft-specific data and configurations, making it easier to replace the RIU without manually re-entering all system parameters.
3. Data Link Communications Application (DLCA-6000):
   Located in Integrated Processing Cabinet (IPC) 1, the DLCA implements advanced features like FANS 1/A CPDLC. These capabilities let pilots request clearances and transmit position reports digitally, reducing radio congestion and improving clarity.
4. Flight Management System (FMS):
   The FMS can pull flight plan updates, wind aloft data, and oceanic clearances via the data link. This automation saves pilot workload and ensures more accurate route planning, especially over long-haul segments.

Key Benefits

1. Efficient Communication:
   By minimizing verbal radio calls through CPDLC and ACARS text messages, flight crews can exchange route clearances or meteorological data with ground stations and dispatch centers quickly and accurately. Fewer voice transmissions translate to reduced frequency congestion and lower pilot workload.
2. Enhanced Operational Insight:
   Airlines can keep close tabs on an aircraft’s position, flight plan progress, and maintenance status in near real-time. This data pipeline enables timely decision-making for routing, turnaround, or servicing needs.
3. Global Coverage (with Optional SATCOM):
   While VHF coverage is reliable in most populated air routes, the Airbus A220 Airborne Data Link can extend coverage worldwide with optional satellite-based connectivity. This is especially vital on transoceanic or remote flights.
4. Future-Proofing with FANS and CPDLC:
   As more airspaces around the globe adopt next-generation data link standards, the A220’s optional FANS 1/A CPDLC functionality positions operators well for compliance. It also improves safety by reducing miscommunication and providing a clear, text-based log of instructions.

Looking Ahead

Data link technology will likely continue evolving toward even faster and more robust communication solutions—integrating with emerging satellite constellations and incorporating advanced automation features. Real-time data analytics, predictive maintenance, and enriched weather feeds are on the horizon, potentially allowing flight crews to adapt routes on the fly while dispatch centers optimize entire fleets. As a cutting-edge regional jet, the Airbus A220 remains well-positioned to harness these innovations, thanks to its flexible and forward-looking data link architecture.
