Before broadband connectivity and real-time aircraft tracking became normal, airlines were already sending digital messages between aircraft and ground stations. Long before passengers had Wi-Fi, the flight deck was quietly exchanging operational data across the globe. The ACARS System in the Boeing 747-400 represents one of the most important steps in aviation’s transition from voice-only communication to digital data exchange.

ACARS, or Aircraft Communications Addressing and Reporting System, was introduced in the late 1970s to automate routine airline communications. Instead of relying solely on voice radio to pass fuel figures, departure times, or maintenance information, aircraft could transmit formatted digital messages directly to airline operations centres. This reduced radio congestion, improved accuracy, and significantly lowered crew workload.

By the time the Boeing 747-400 entered service, ACARS had matured into a fully integrated aircraft communication network. The ACARS System in the Boeing 747-400 is not a standalone radio but a system built around a central Communication Management Unit (CMU), which controls the routing of messages between onboard avionics and external communication links.

The CMU acts as the brain of the system, managing digital inputs and outputs across ARINC 429 data buses and interfacing with communication radios .

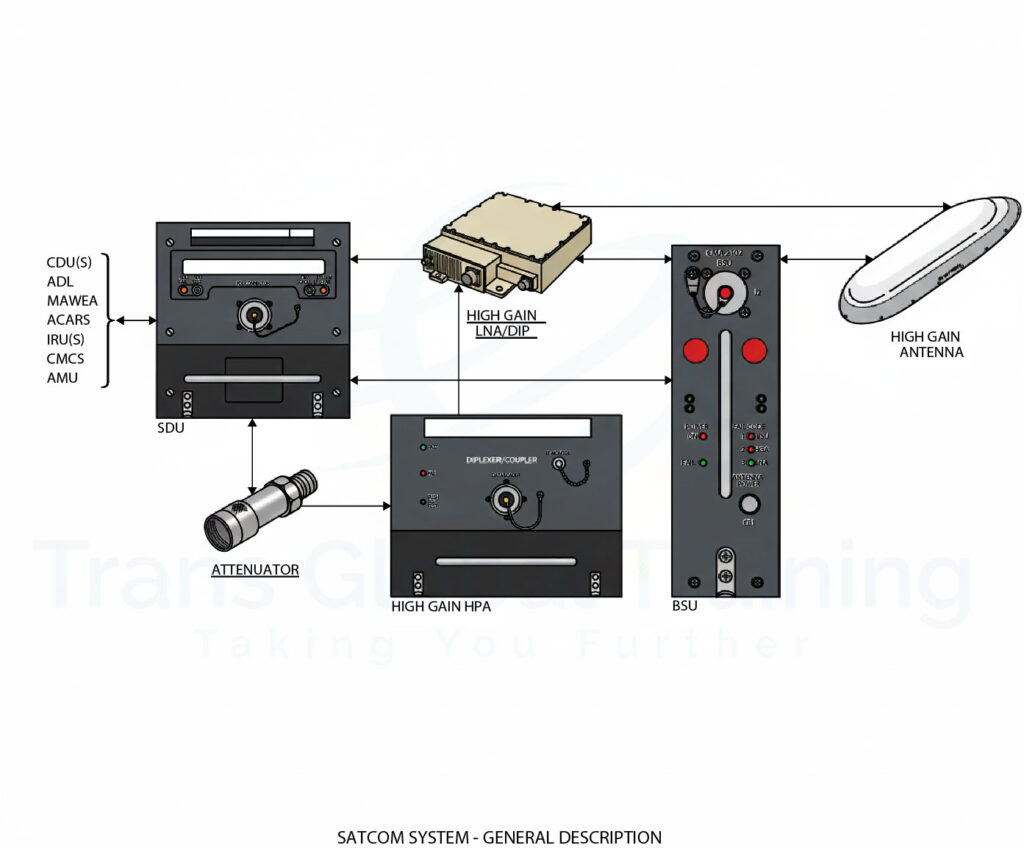

What makes the ACARS System in the Boeing 747-400 particularly powerful is its ability to use multiple communication pathways. Depending on availability and routing, ACARS can transmit messages through VHF radio, HF radio, or SATCOM. This flexibility ensures that digital communication remains available whether the aircraft is over land, oceanic airspace, or remote polar regions.

From the flight crew’s perspective, ACARS messages are accessed and managed through cockpit interfaces such as Control Display Units (CDUs). The system supports structured message formats, automatic reporting functions, and datalink exchanges. It can send operational messages such as off-block times, take-off times, fuel data, and position reports directly to airline dispatch without a single spoken word.

One of the defining advantages of ACARS is accuracy. Voice communication is susceptible to mishearing, accent variations, and frequency congestion. Digital messaging eliminates ambiguity. When a message is transmitted, it is received exactly as formatted. For long-haul aircraft like the 747-400, operating across multiple international regions and languages, this reliability is invaluable.

The system also integrates with onboard monitoring and maintenance functions. Through its interface with the aircraft’s avionics architecture, ACARS can transmit maintenance reports and fault information to ground engineers. This capability allows airlines to prepare parts and personnel before the aircraft even lands, improving turnaround efficiency and reducing delays.

The ACARS System in the Boeing 747-400 also represents an early step toward modern Controller–Pilot Data Link Communications (CPDLC). While ACARS primarily supports airline operational control, it laid the technological foundation for future air traffic datalink systems that reduce reliance on voice radio and improve airspace efficiency.

As aviation continues to evolve toward fully connected aircraft, real-time flight tracking, and broadband satellite data, ACARS remains a foundational system. Even in newer aircraft equipped with advanced digital networks, ACARS continues to operate as a dependable messaging backbone.

In many ways, the ACARS System in the Boeing 747-400 was ahead of its time. It brought structured digital communication into the cockpit decades before passengers began expecting internet connectivity in flight. Quietly, reliably, and efficiently, it transformed how airlines and aircraft talk to each other.
